Overview

Introduction

The manhole cover monitoring sensor is installed on the back of the manhole cover, which is placed horizontally as a normal state. The alarm condition is trigerred when the manhole cover is tilted and the inclination angle is over 10° (configurable). The alarm signal is sent to the monitoring center through wireless transmission. Then, the monitoring center analyzes the data and judges the alarm.

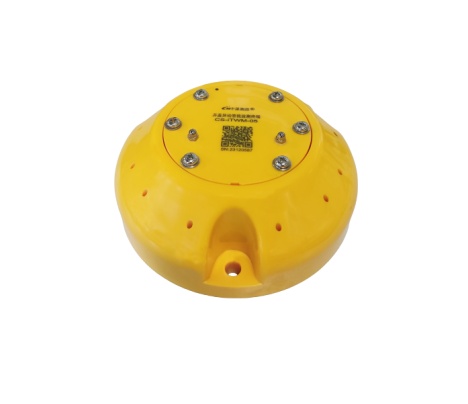

The device, shown in Figure 1, can provide three wireless communication modes: LoRaWAN, NB-IoT and GPRS. It is powered by battery, and features easy mounting, long battery life, high detection accuracy and stable operation.

Working principle

The manhole cover monitoring sensor is installed on the back of the manhole cover. It measures the current inclination angle of the manhole cover through the acceleration sensor. The alarm condition is trigerred when the manhole cover is tilted and the inclination angle is over 10° (configurable). The alarm signal is sent to the monitoring center through wireless transmission.

The device supports setting the timing reporting interval, and alarm angle threshold（default 10°）. In the normal condition, the device sends the report message at the time interval of the periodic report. The status flag in the message can be used to determine whether it’s the alarm or normal status. When the device detects that the battery voltage is low, the device reports a low voltage warning message. The device sends the status information according to the set timing interval.

The conditions of abnormal movement are: ABS(current angle - initial angle) ＞ alarm angle threshold. When the condition is met, an alarm message is sent.
