CS-iWPT302-TWireless Bluetooth Temperature Transmitter
CS-iWPT302-T wireless Bluetooth temperature transmitter is mainly used for temperature acquisition and monitoring of oil, gas, heating and other transportation pipelines, as well as tanks and other facilities. The product is transmitted via Bluetooth and can be configured with parameters and monitored for data collection through a mobile app. It can also be used in conjunction with a Bluetooth host (Bluetooth data collector) to receive Bluetooth data.

Scan QR code for more information

Call the company number

+86-29-88325620

CS-iWPT302-T

Product Introduction
Technical Parameters
Model Selection Guide
浏览过的产品

Description

       The CS-iWPT302-T wireless Bluetooth temperature transmitter is mainly used for temperature acquisition and monitoring of oil, gas, heating and other transportation pipelines, as well as tanks and other facilities. The product is transmitted via Bluetooth and can be configured with parameters and monitored for data collection through a mobile app. It can also be used in conjunction with a Bluetooth host (Bluetooth data collector) to receive Bluetooth data.

       The CS-iWPT302-T is equipped with a disposable lithium battery and features a low-power design, with a lifespan of up to 5 years. The product adopts PT1000 platinum resistance as the temperature sensor and uses a dedicated signal conversion device for temperature acquisition and calculation. It has the characteristics of small size, low power consumption, high accuracy, easy installation, and simple use.

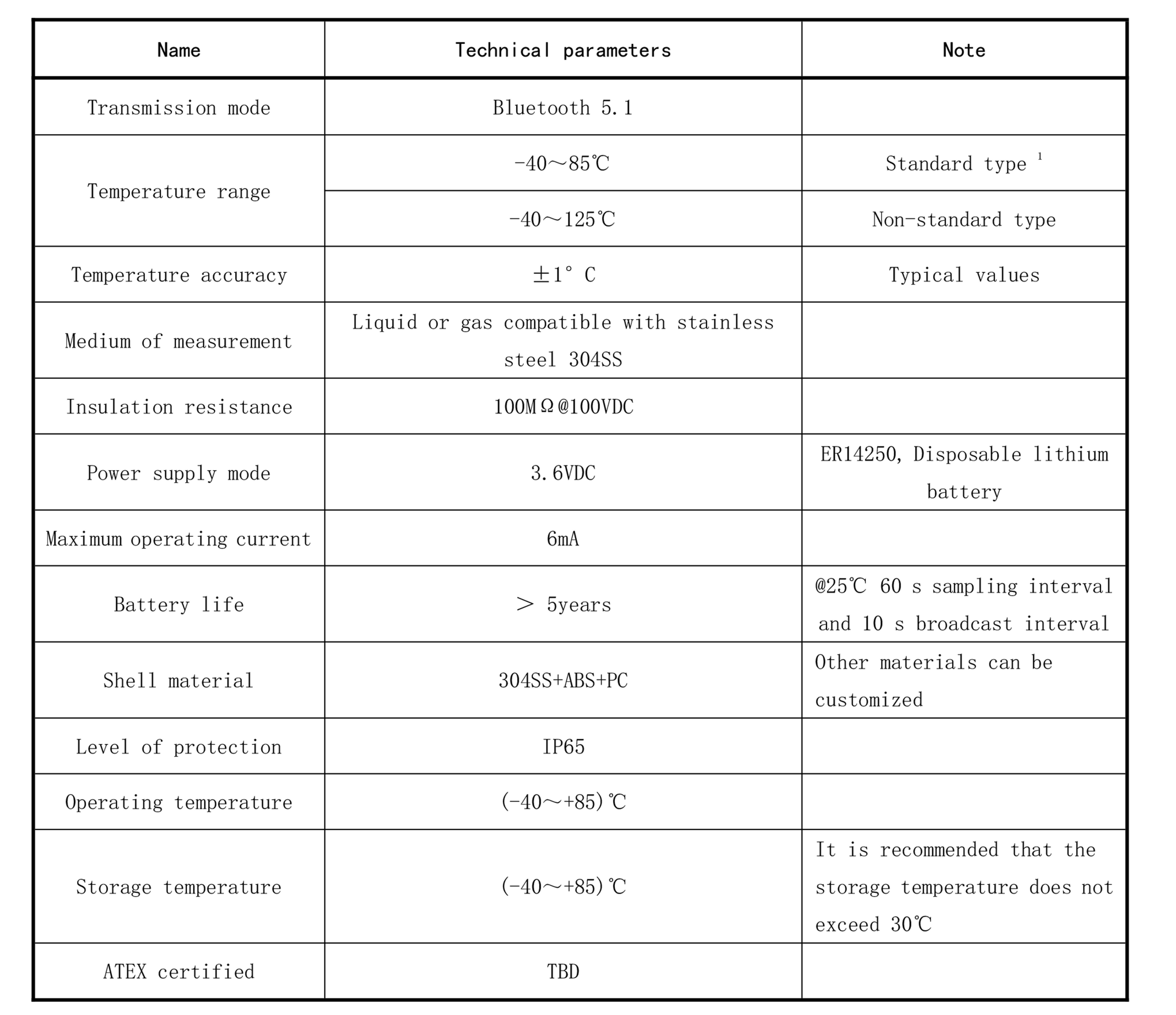

Performance Specifications

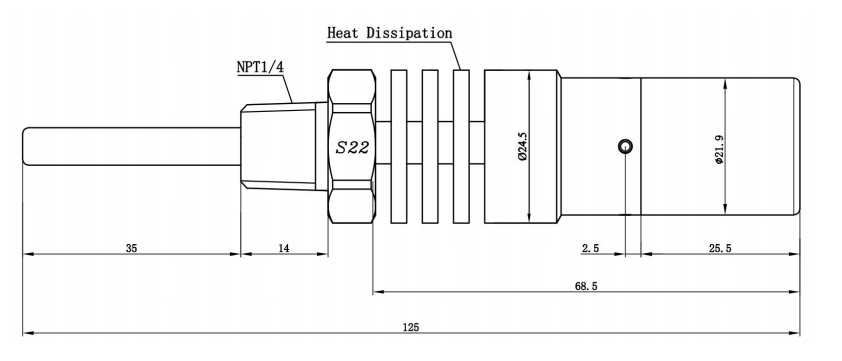

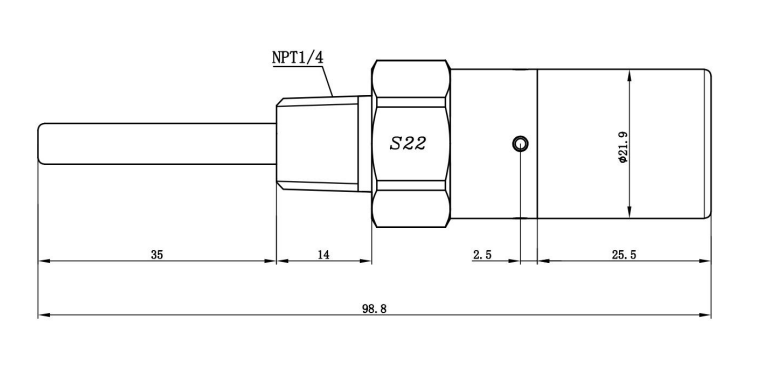

Structure and Dimension (mm)




4HY-133压力变送器是采用陶瓷材料经特殊工艺精制而成的干式陶瓷压阻压力传感器,陶瓷是一种公认的高弹性、抗腐蚀、抗磨损、抗冲击和振动的材料。陶瓷的热稳定特性及它的厚膜电阻可以使它的工作温度范围高达-40~135℃,而且具有测量的高精度、高稳定性。电气绝缘程度>2kV,输出信号强,长期稳定性好。高特性,低价格的陶瓷传感器将是压力传感器的发展方向,在欧美国家有全面替代其它类型传感器的趋势,在中国也越来越多的用户使用陶瓷传感器替代扩散硅压力传感器。


HY-133干式陶瓷压力传感器被广泛地应用在:过程控制、环境控制、液压和气动设备、伺服阀门和传动、化学制品和化学工业及医用仪表等众多领域。它的尺寸小,直径18mm,量程范围1~500bar,价格低,被广泛的应用在各种测量压力的场合。


HY-133压力变送器是采用陶瓷材料经特殊工艺精制而成的干式陶瓷压阻压力传感器,陶瓷是一种公认的高弹性、抗腐蚀、抗磨损、抗冲击和振动的材料。陶瓷的热稳定特性及它的厚膜电阻可以使它的工作温度范围高达-40~135℃,而且具有测量的高精度、高稳定性。电气绝缘程度>2kV,输出信号强,长期稳定性好。高特性,低价格的陶瓷传感器将是压力传感器的发展方向,在欧美国家有全面替代其它类型传感器的趋势,在中国也越来越多的用户使用陶瓷传感器替代扩散硅压力传感器。


HY-133干式陶瓷压力传感器被广泛地应用在:过程控制、环境控制、液压和气动设备、伺服阀门和传动、化学制品和化学工业及医用仪表等众多领域。它的尺寸小,直径18mm,量程范围1~500bar,价格低,被广泛的应用在各种测量压力的场合。
