With the rapid development of AI computing centers, high-density computing clusters, energy storage power stations, and industrial refrigeration equipment, power consumption per cabinet keeps rising. Traditional air cooling can no longer meet the high-efficiency heat dissipation requirements of high-power equipment. With advantages of low PUE, high heat dissipation efficiency and stable operation, liquid cooling has become the mainstream upgrade direction in data centers, energy storage, new energy and industrial refrigeration fields.

The safe and stable operation of liquid cooling systems highly relies on accurate and real-time monitoring of pressure and temperature. Abnormal pressure may cause leakage, flow interruption, blockage and cavitation; abnormal temperature will lead to overheating and frequency reduction of equipment, condensation short circuit and thermal runaway. Sensors with high precision, high reliability, zero leakage and easy integration are the "safety nerves" of liquid cooling systems.

Targeting the harsh working conditions of liquid cooling systems, Xi'an Chinastar M&C proudly launches three dedicated sensors: CS-PT300G1 Pressure Transmitter, CS-PT602D Digital Pressure Transmitter and CS-WPT300G Temperature & Pressure Integrated Transmitter. They fully cover the needs of pressure monitoring, digital networking and integrated temperature-pressure acquisition, providing one-stop sensing solutions for liquid cooling systems.

一．Core Recommended Product Lineup

(一) CS-PT300G1 Pressure Transmitter for Liquid Cooling

1.Positioning: Core product for basic pressure monitoring of liquid cooling systems, suitable for pressure measurement at CDU, main pipelines, cold plates, water pumps, filters and other points.

2.Core Features:

 ·  All-welded structure, no O-rings, eliminating leakage fundamentally

 ·  Anti-condensation design, adapting to large temperature difference and high humidity conditions

 ·  Forward and reverse overvoltage protection, ESD/EMC compliant with industrial standards

 ·  Vibration resistance, shock resistance and water hammer resistance

·  Optional dual output: 4~20mA / 0.5~4.5V

 · 316L stainless steel connection, compatible with pure water, ethylene glycol and other liquid cooling media

3.Typical Applications: Pressure monitoring for data center CDU, liquid cooling main pipelines, server cold plates, cabinet branches, pump outlets and filter differential pressure.

(二)CS-PT602D Digital Pressure Transmitter（RS485 Modbus）

1.Positioning: Dedicated digital pressure sensor for liquid cooling clusters, intelligent equipment rooms and multi-node networking, supporting remote centralized monitoring.

2.Core Features:

·  RS485 Modbus-RTU output, supporting multi-unit networking and long-distance transmission

·  Digital temperature compensation over full temperature range, high accuracy of ±0.25% FS

·  All-welded structure, no O-rings, zero leakage

·  Anti-condensation, vibration resistance and water hammer resistance

·  Forward and reverse overvoltage protection, ESD/EMC compliant with industrial standards

·  Suitable for intelligent operation and maintenance of multi-node distributed liquid cooling systems

3.Typical Applications: Cluster liquid cooling cabinets, BA systems of intelligent equipment rooms, energy storage liquid cooling, multi-node distributed liquid cooling and centralized CDU monitoring.

(三)CS-WPT300G Temperature & Pressure Integrated Transmitter

1.Positioning: Preferred integrated solution for liquid cooling systems. One device measures pressure and temperature simultaneously, greatly reducing holes, leakage points and simplifying installation.

2.Core Features:

·  Integrated pressure and temperature measurement, dual independent 4~20mA output

·  All-welded structure, no O-rings, no leakage risk

·  Anti-condensation design, compatible with refrigerants and chilled water systems

·  High precision and high stability

· Forward and reverse overvoltage protection, industrial-grade EMC/ESD

·  Optional probe length: 20mm/50mm/75mm

3.Typical Applications: Magnetic suspension units, chilled water screw units, water/ground source heat pumps, industrial refrigeration, liquid cooling supply/return water, energy storage liquid cooling systems.

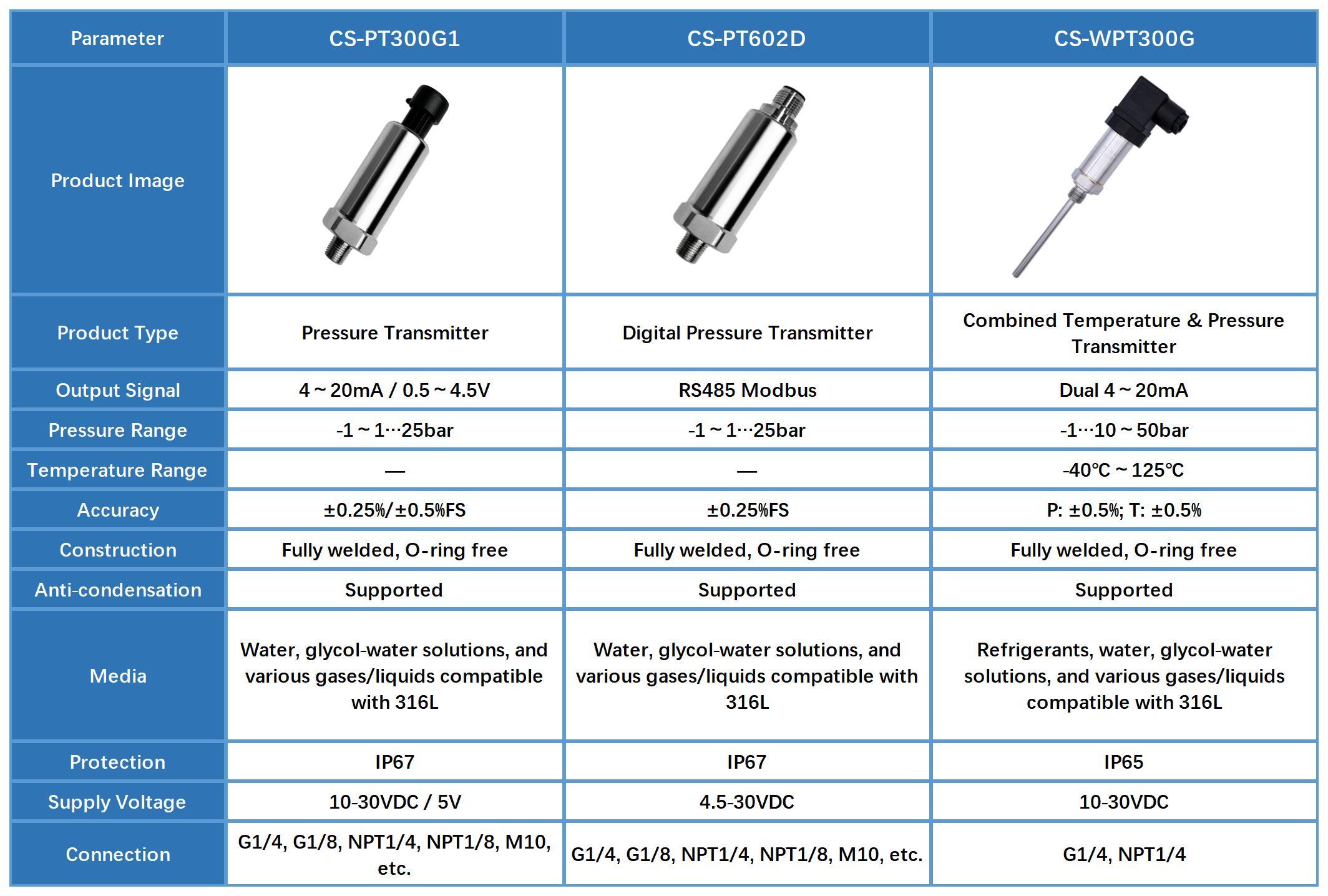

Product Parameter Summary

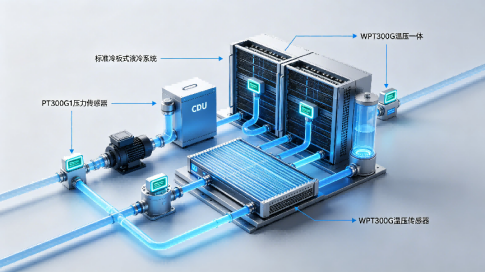

二．Recommended Monitoring Points for Standard Liquid Cooling System (CDU + Cabinet + Cold Plate)：

1. CDU pump outlet: CS-PT300G1 / CS-PT602D monitors system total pressure, prevents cavitation and overpressure.

2. Before and after filter: CS-PT300G1 for differential pressure monitoring and blockage early warning.

3. Cabinet supply/return ports: CS-WPT300G measures pressure and temperature synchronously to judge flow, temperature difference and prevent condensation.

4. Cold plate branch: CS-WPT300G for end temperature and pressure monitoring to ensure uniform heat dissipation.

5. Cluster multi-nodes: CS-PT602D (RS485 networking) for centralized collection, remote monitoring and intelligent O&M.

三．Core Value of the Solution

1. Zero Leakage & Higher Safety All-welded structure across the series, no risk of O-ring aging, completely solving liquid cooling system leakage pain points.

2. High Precision & More Stable High-stability sensing core + full temperature range compensation, ensuring accurate pressure and temperature data, avoiding equipment frequency reduction or downtime.

3. Integration & More Convenient CS-WPT300G integrates temperature and pressure, reducing 50% of holes, connectors and wiring, lowering construction and O&M costs.

4. Digital & Smarter CS-PT602D supports RS485 Modbus, multi-unit networking and remote monitoring, adapting to intelligent liquid cooling and computing centers.

5. Full Scenario Coverage Covers data centers, energy storage, industrial refrigeration, heat pumps and new energy thermal management, one solution for the whole industry.

四．Applicable Scenarios

✅ AI computing centers / high-density GPU liquid cooling

✅ Large data center CDU heat exchange systems

✅ Lithium battery liquid cooling cabinets for energy storage stations

✅ Industrial water chillers and heat pump units

✅ Refrigerant monitoring for magnetic suspension / screw units

✅ New energy vehicle / energy storage thermal management systems

Xi'an Chinastar M&C has deep roots in the sensor field for many years, adhering to innovative technology as the core to provide users with highly reliable, high-precision and high-stability sensing solutions. Facing the liquid cooling era, Chinastar M&C relies on three core products—CS-PT300G1, CS-PT602D and CS-WPT300G—to build a solid safety sensing line for liquid cooling systems, helping customers achieve efficient, stable and low-carbon operation.
