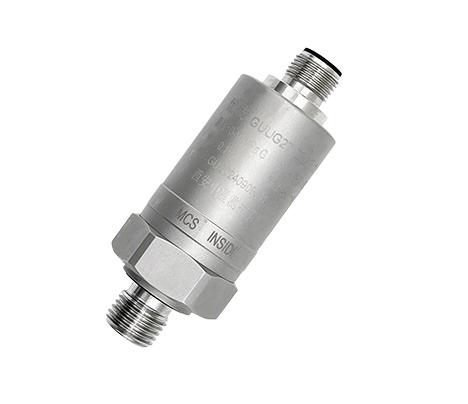

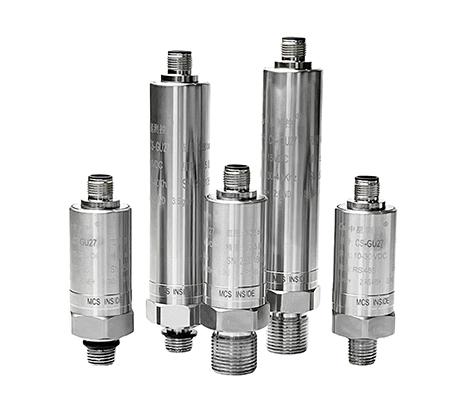

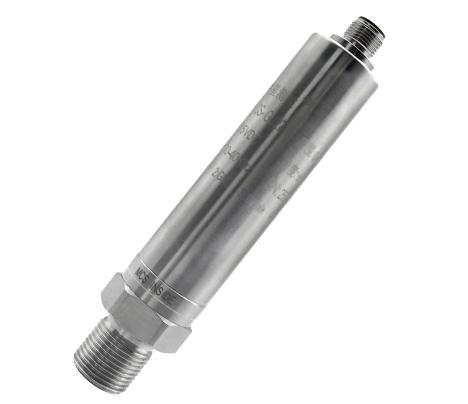

CS-GU27
- Product Introduction
- Technical Parameters
- Model Selection Guide
Description
CS-GU27 pressure transmitter can be used in the field of pressure measurement, including advanced intelligent manufacturing industry. The pressure measurement based on absolute pressure and gauge pressure can be realized by selecting high-precision MCS pressure element and special calibration circuit. CS-GU27 pressure transmitter also has the advantages of high accuracy in the whole temperature range, high waterproof grade and high electromagnetic compatibility (EMC) level. It is a good choice as a pressure measurement.
Features
● MCS pressure elemente
● High precision in the whole temperature range
● Protection grade IP67
● Reverse voltage protection
● Fully welded, without sealing ring
● Stainless steel casing
Applications
● High-precision fluid measurement in advanced manufacturing field
● High-precision hydraulic lubrication system
● Fluid measurement in wide temperature area in harsh environment

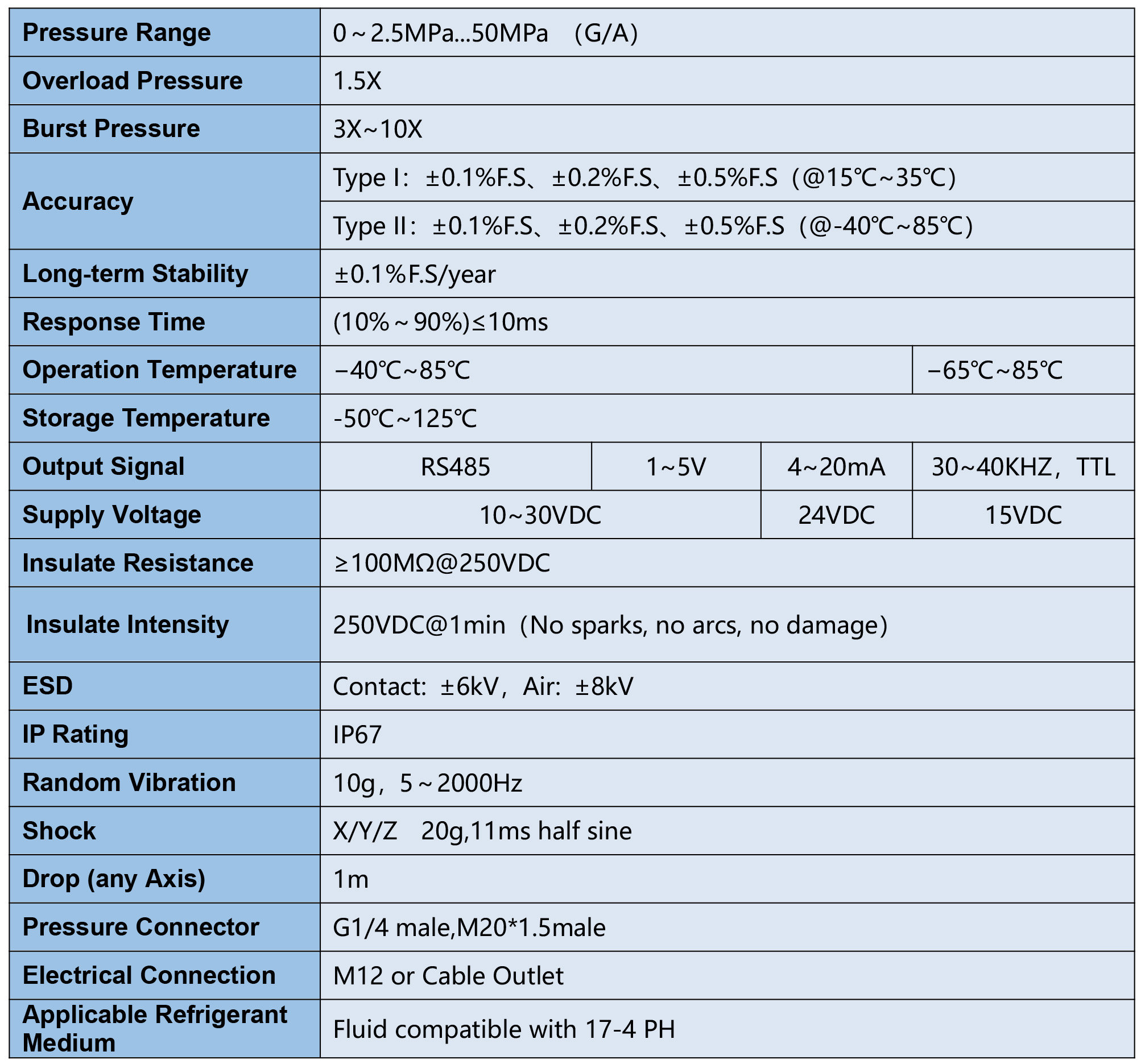

Performance Specifications
Temperature:20℃~25℃;Power supply:24VDC;Relative humidity:45%~75%; ambient atmospheric pressure:86~106KPa;

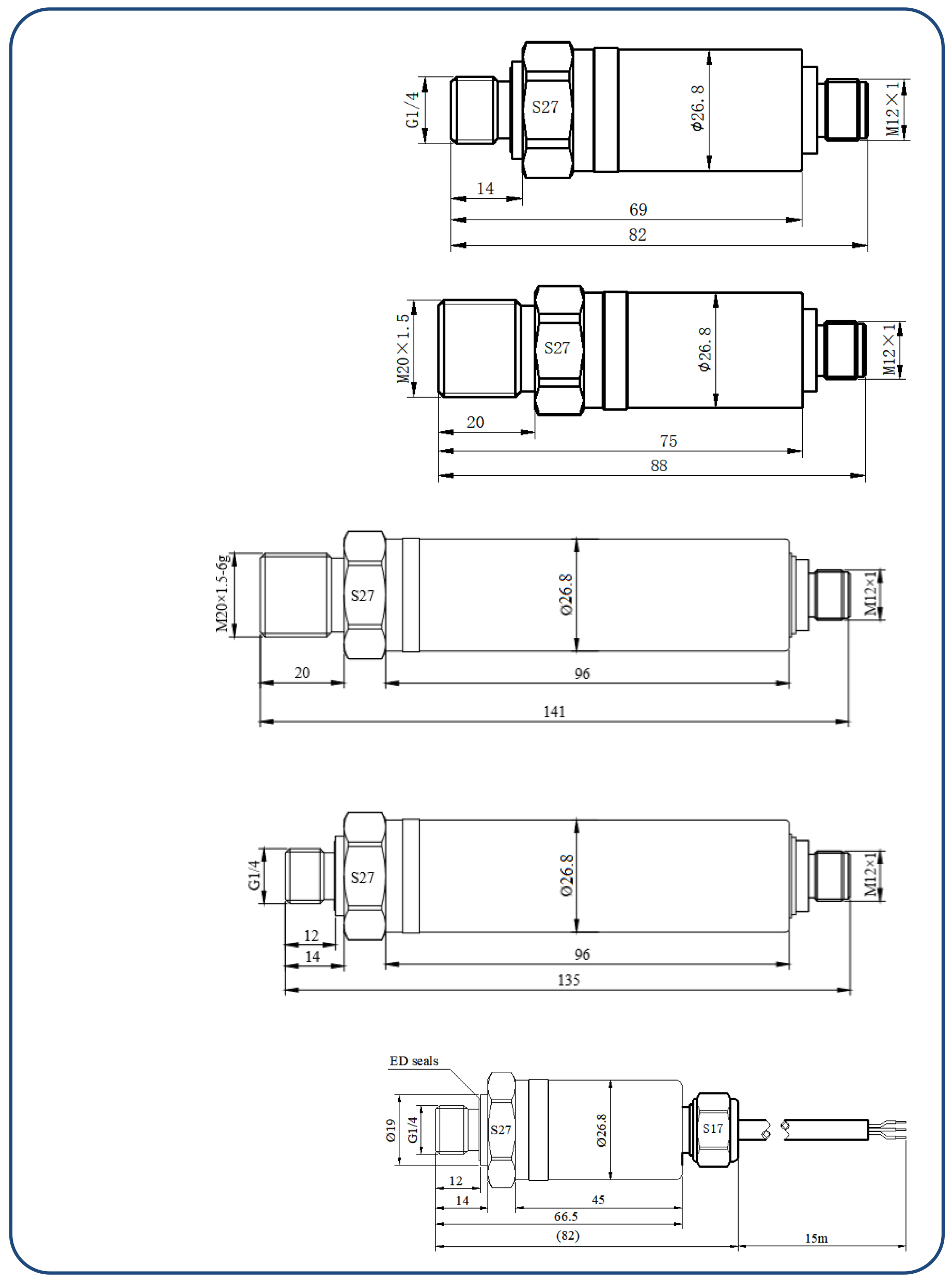

Structure and Dimension (mm)
4HY-133压力变送器是采用陶瓷材料经特殊工艺精制而成的干式陶瓷压阻压力传感器,陶瓷是一种公认的高弹性、抗腐蚀、抗磨损、抗冲击和振动的材料。陶瓷的热稳定特性及它的厚膜电阻可以使它的工作温度范围高达-40~135℃,而且具有测量的高精度、高稳定性。电气绝缘程度>2kV,输出信号强,长期稳定性好。高特性,低价格的陶瓷传感器将是压力传感器的发展方向,在欧美国家有全面替代其它类型传感器的趋势,在中国也越来越多的用户使用陶瓷传感器替代扩散硅压力传感器。
HY-133干式陶瓷压力传感器被广泛地应用在:过程控制、环境控制、液压和气动设备、伺服阀门和传动、化学制品和化学工业及医用仪表等众多领域。它的尺寸小,直径18mm,量程范围1~500bar,价格低,被广泛的应用在各种测量压力的场合。
HY-133压力变送器是采用陶瓷材料经特殊工艺精制而成的干式陶瓷压阻压力传感器,陶瓷是一种公认的高弹性、抗腐蚀、抗磨损、抗冲击和振动的材料。陶瓷的热稳定特性及它的厚膜电阻可以使它的工作温度范围高达-40~135℃,而且具有测量的高精度、高稳定性。电气绝缘程度>2kV,输出信号强,长期稳定性好。高特性,低价格的陶瓷传感器将是压力传感器的发展方向,在欧美国家有全面替代其它类型传感器的趋势,在中国也越来越多的用户使用陶瓷传感器替代扩散硅压力传感器。
HY-133干式陶瓷压力传感器被广泛地应用在:过程控制、环境控制、液压和气动设备、伺服阀门和传动、化学制品和化学工业及医用仪表等众多领域。它的尺寸小,直径18mm,量程范围1~500bar,价格低,被广泛的应用在各种测量压力的场合。
