Description

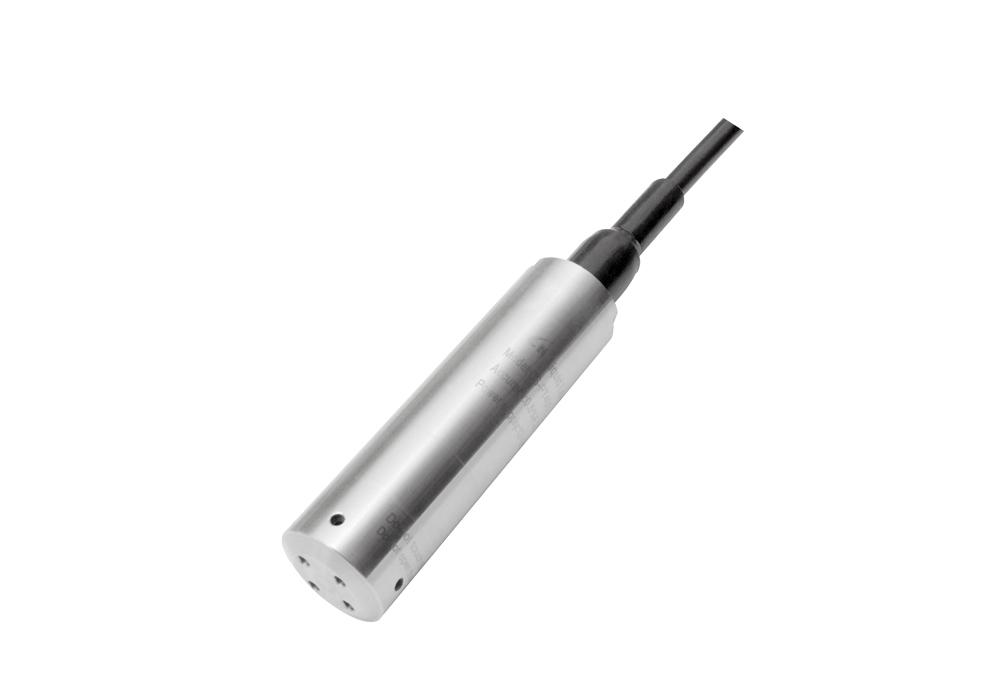

The model CS-PT400Level transmitter for general purpose is the ideal solution for price sensitive industrial applications.

The model CS-PT400 offers continuous measuring ranges between 0 ... 1 m H2O and 0 ... 50 m H2O.

It has been designed to the current demands of the industry and has a 4 ... 20 mA output as standard, an accuracy of 0.5%F.S and PE cable. With IP 68 ingress protection, it is suitable for measurement level up to 350 mH2O.

At the same time, it offersPE cable.

All variants described in this data sheet are available on veryshort lead times. For particularly urgent demands, there is asizeable stock available

Features

● Silicon resistance sensor

● Output 4 ... 20 mA、0.5～4.5VDC

● The leads are non-polar

● Ingress protection IP 68 permanently up to 350 m water column

● Over voltage and Reverse protected

● High accuracy

Applications

● Level measurement in rivers and lakes

● Deep well and groundwater monitoring

● Level measurement in vessel and storage systems

● Monitoring of sewage, settling and storm-water retention basins

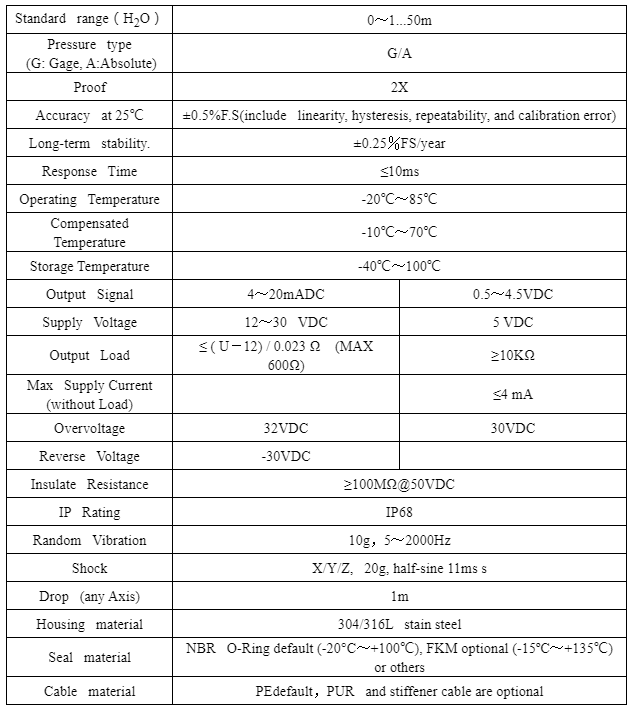

Performance specifications

Test condition, Temperature: 20±2℃, power supply 12VDC/5VDC, relative humidity 45%~75%, ambient atmospheric pressure: 86KPa～106KPa

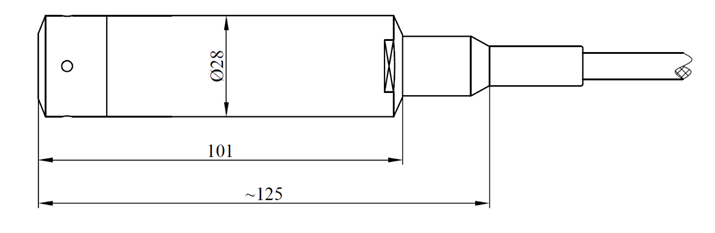

Structure and Dimension (mm)

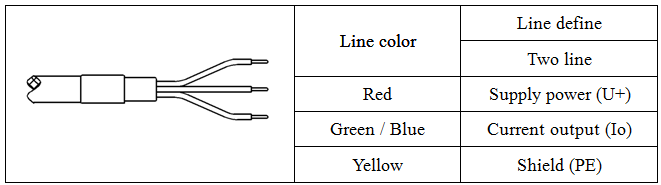

Electrical connection
