SCS19High Precision Pressure Sensor

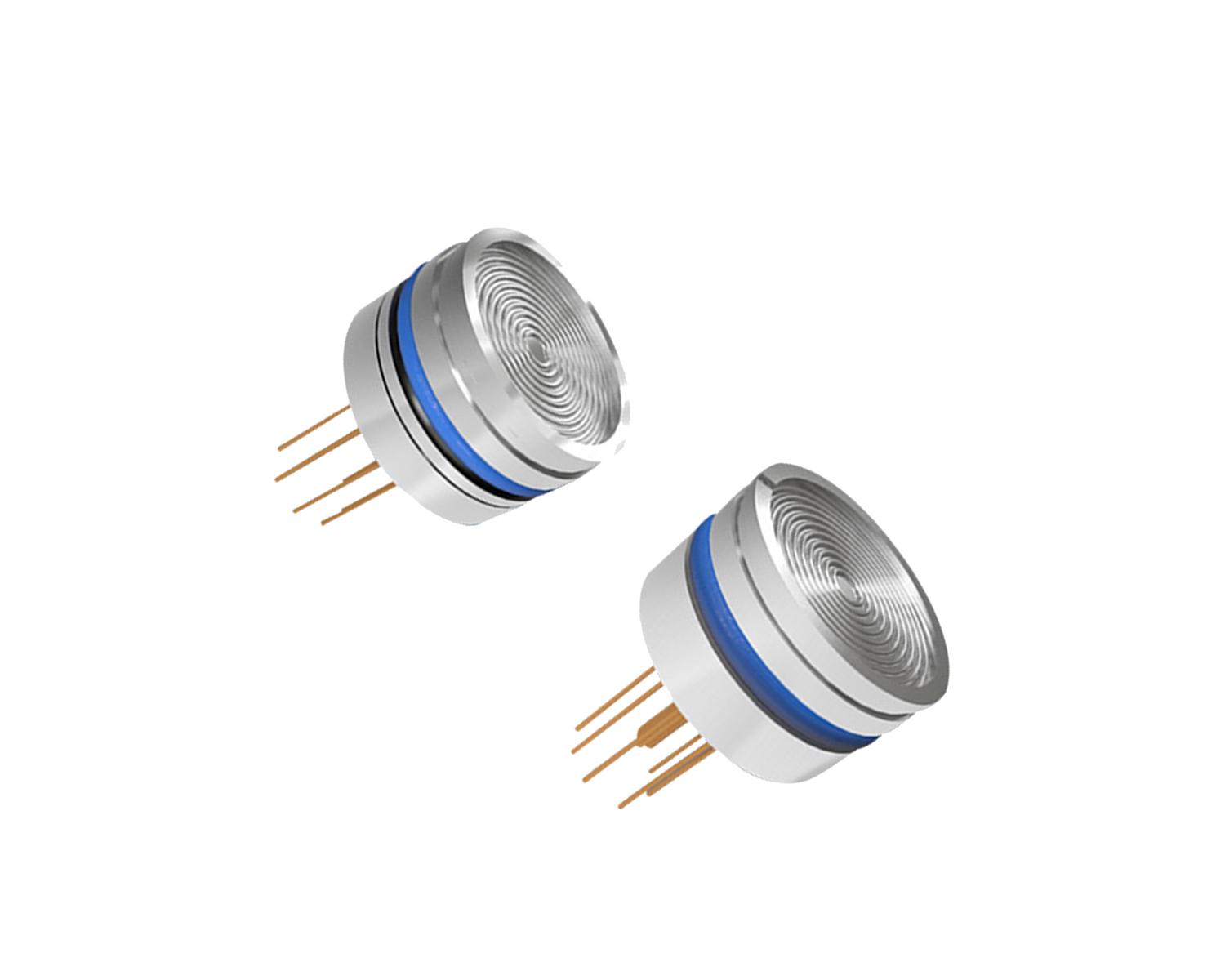

SCS19 series pressure sensor adopts medium isolation type package. This series of sensors is designed based on harsh application environment. The pressure-sensitive chip is encapsulated in a cavity filled with silicone oil, and the cavity is composed of a corrugated diaphragm and a stainless steel shell seal. This series of sensors covers the pressure measurement range of 0~70MPa, and can provide three types of pressure measurement: absolute pressure (A), gauge pressure (G) and sealed gauge pressure (S). SCS19 series sensors have the advantages of high repeatability, high reliability and wide operating temperature range.

Scan QR code for more information

Call the company number

+86-29-88325620

SCS19

Product Introduction
Technical Parameters
Model Selection Guide
浏览过的产品

Product Introduction

       SCS19 series pressure sensor adopts medium isolation type package. This series of sensors is designed based on harsh application environment. The pressure-sensitive chip is encapsulated in a cavity filled with silicone oil, and the cavity is composed of a corrugated diaphragm and a stainless steel shell seal. This series of sensors covers the pressure measurement range of 0~70MPa, and can provide three types of pressure measurement: absolute pressure (A), gauge pressure (G) and sealed gauge pressure (S). SCS19 series sensors have the advantages of high repeatability, high reliability and wide operating temperature range.


Features



Application

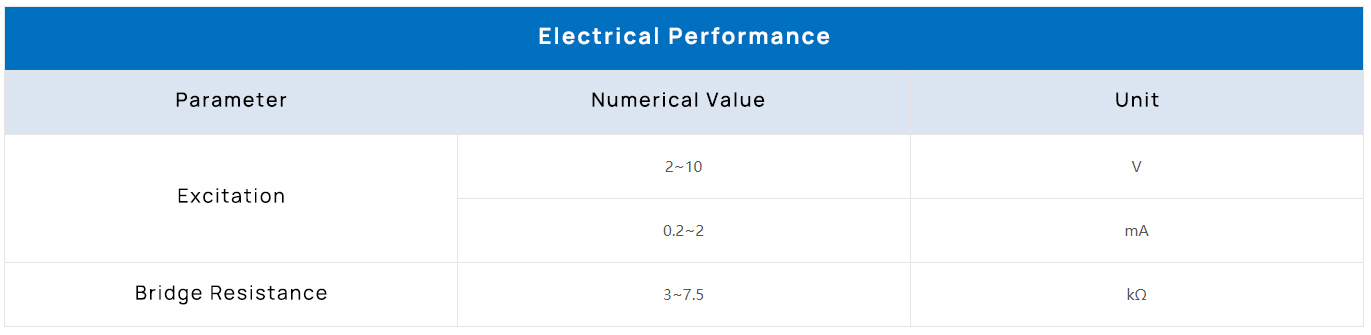

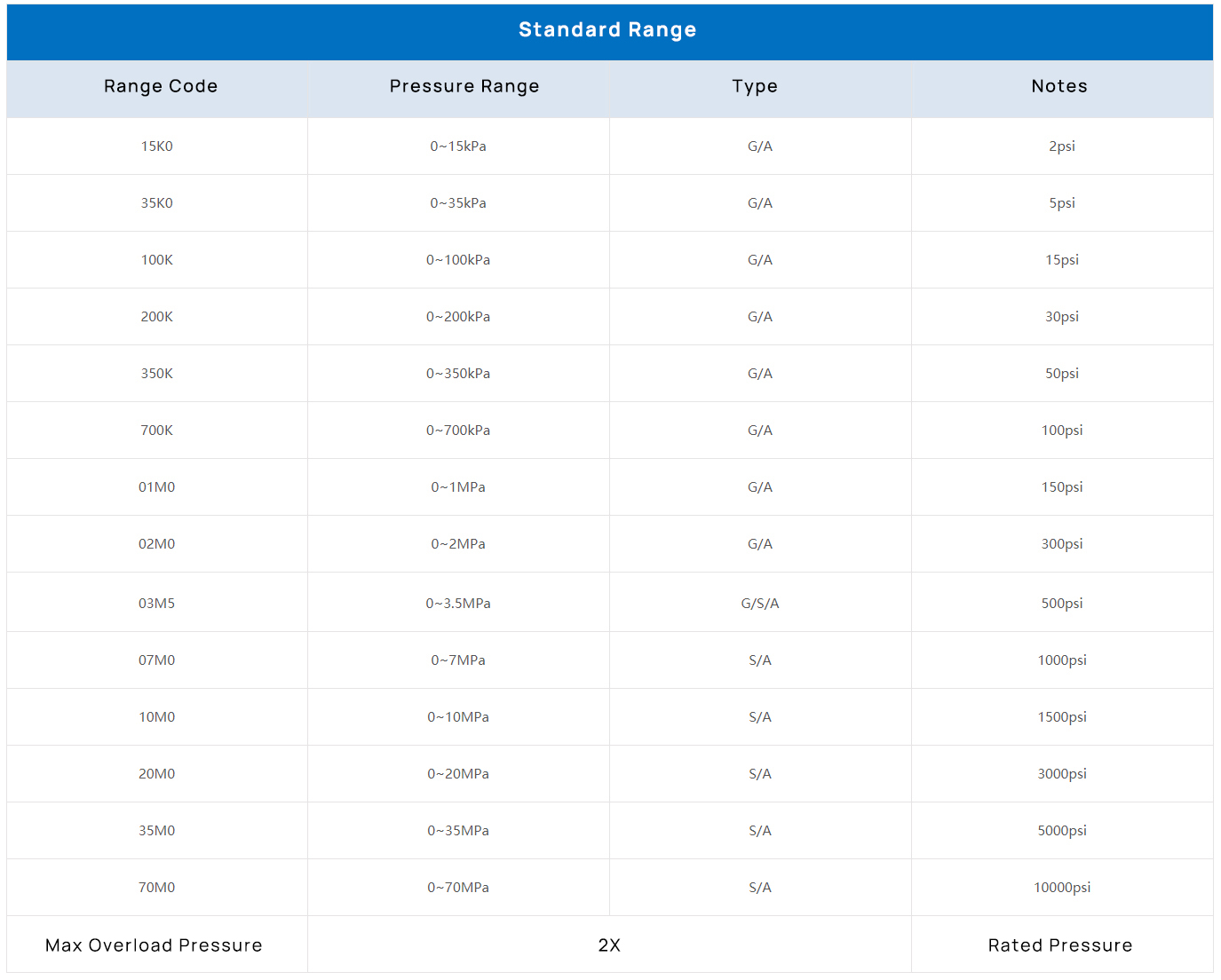

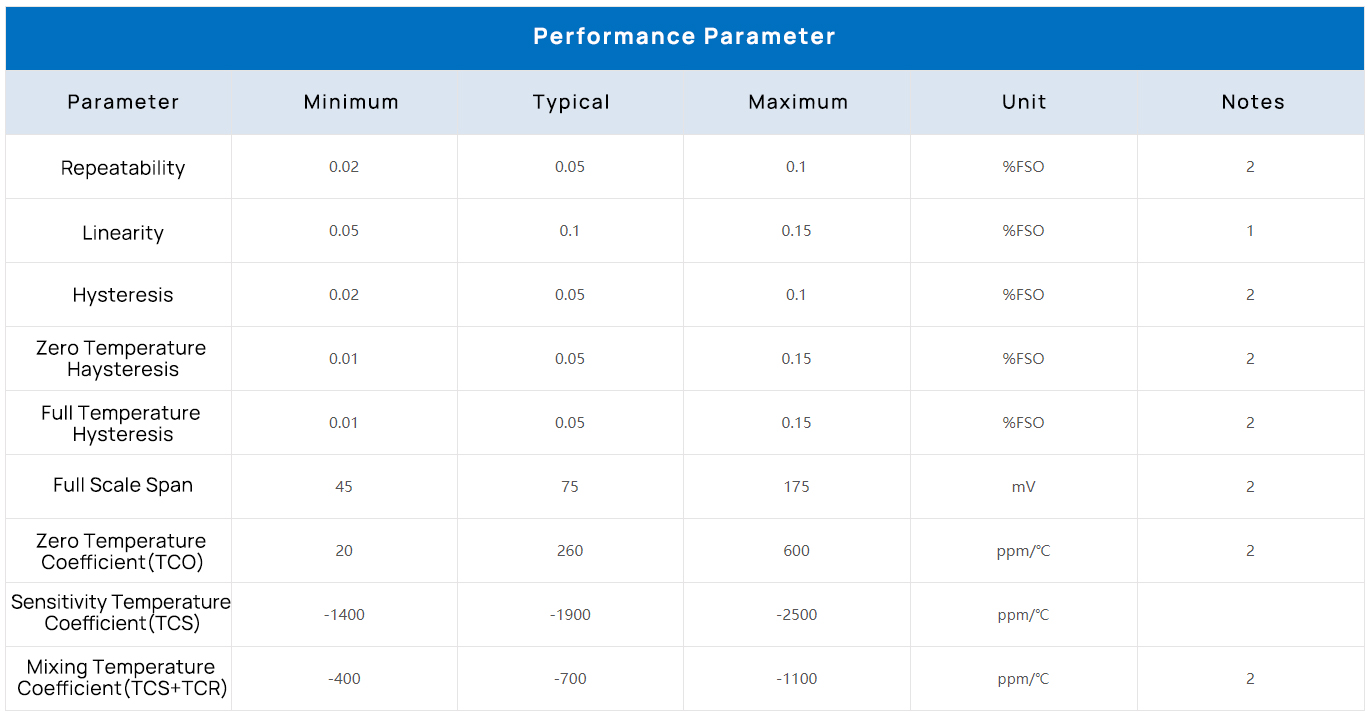

Technical Indicators






Notes: 1. Least squares fit straight line; 2. 1.5mA power supply; 3. Reference temperature is 25℃; 4. S: sealing pressure; A: absolute pressure; G: gauge pressure;



Overall Dimension

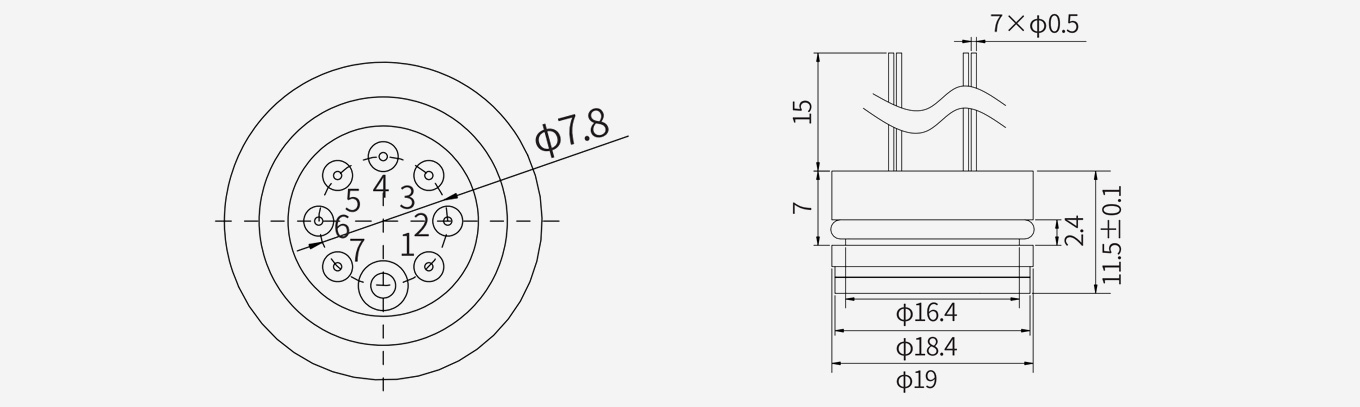

Above 10MPa (including 10MPa) absolute pressure/sealed gauge pressure

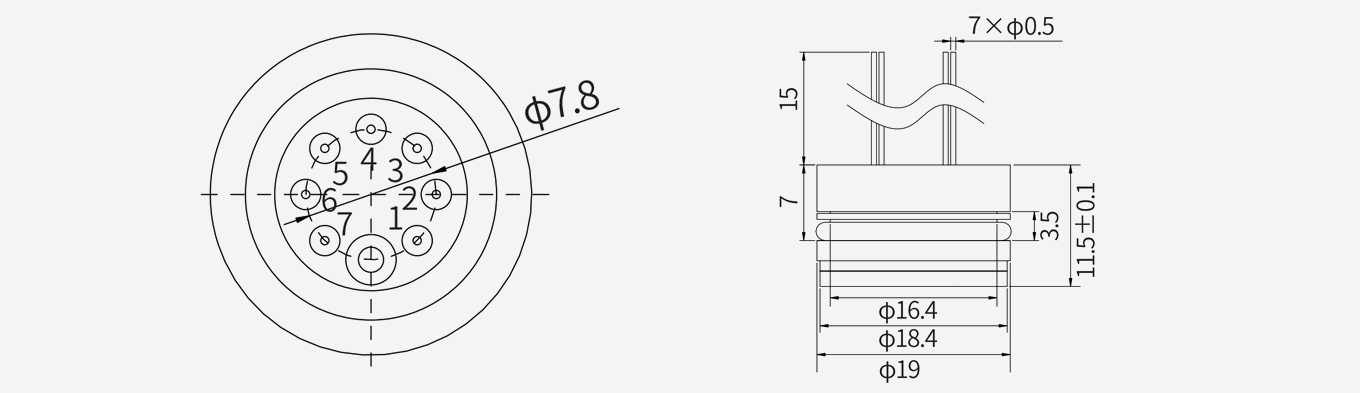

Absolute pressure/sealed gauge pressure below 10MPa

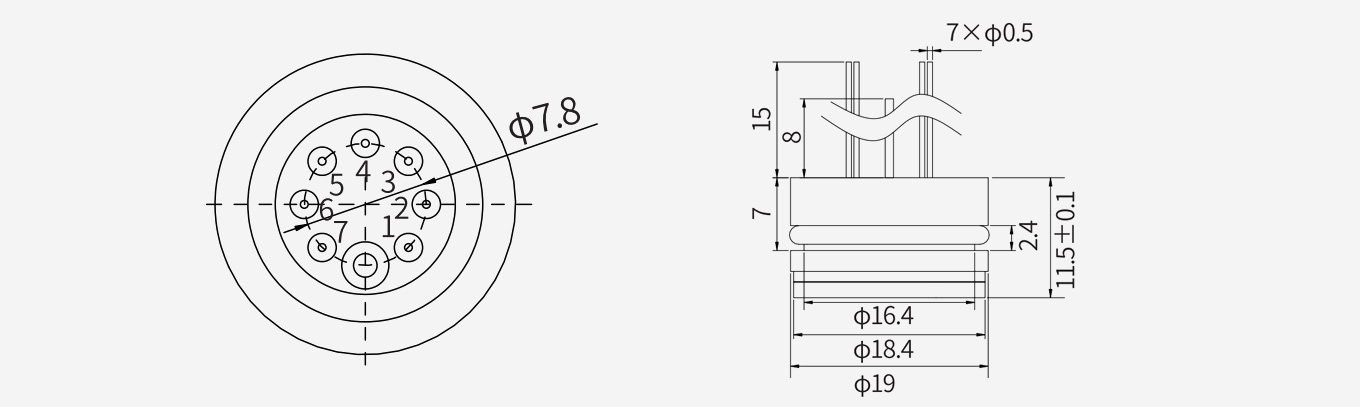

Gauge pressure below 10MPa
